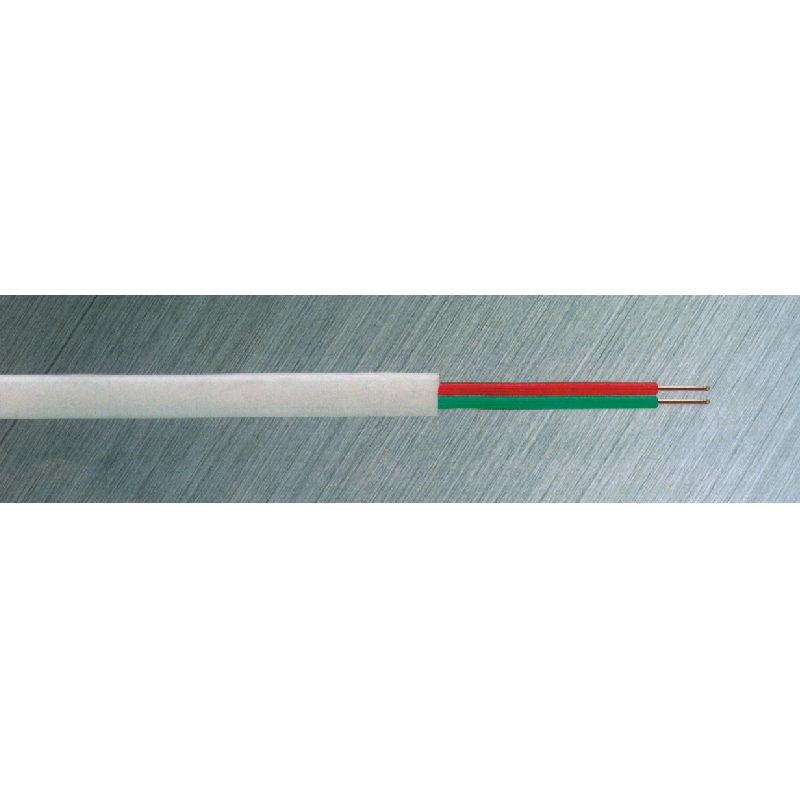

1、HBVE Polypropylene insulated, PVC sheath oblate telephone wire
| Application: | Layout for indoor and outdoor telephone wire |
| Product characteristics: |
| Inside conductor use single core annealed ocyacid free copper round wire |
| Polypropylene insulated |
| PVC sheath |
| Lenhth of each roll: 100 or 200 m/roll |
| Reference standard: |
| GB11016.3 |
| Our enterprise standard |
Structure drawing:
Comprehensive technical parameters of HBVB oblate telephone wire:
| NO./mm structure of inner conductor | Insulation layer thickness | Diameter of outer insulation | Thickness of sheath | Sheath | Ω/KM Maxi resistance of conductor at 70°C | |||
| Specified value(mm) | Mini value(mm) | Specified value(mm) | Mini value(mm) | Lower limit(mm) | Upper limit(mm) | |||
| 2x1/0.4 | 0.25 | 0.15 | 1.00±0.06 | 0.5 | 0.35 | 2.0x3.3 | 2.4x3.9 | 145 |
| 2x1/0.5 | 0.2 | 0.1 | 1.00±0.06 | 0.5 | 0.35 | 2.0x3.3 | 2.4x3.9 | 95 |

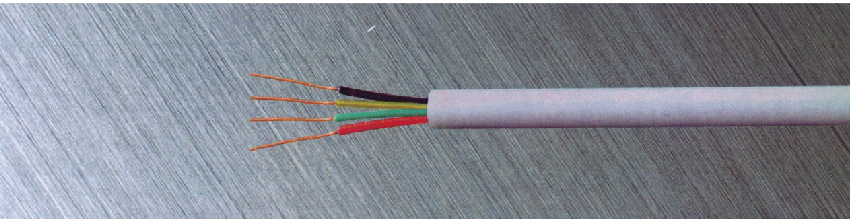

2、HBV Polypropylene insulated, PVC sheath round telephone wire
| Application: | Layout for indoor and outdoor telephone wire |
| Product characteristics: |
| Inside conductor use single core annealed ocyacid free copper round wire |
| Polypropylene insulated |
| PVC sheath |
| Lenhth of each roll: 100 or 200 m/roll |
| Reference standard: |
| GB11016.3 |
| Our enterprise standard |
Structure drawing:
Comprehensive technical parameters of HBV polypropylene insulated,PVC sheath telephone wire:
| NO./mm structure of inner conductor | Insulation layer thickness | Diameter of outer insulation | Thickness of sheath | Sheath | Ω/KM Maxi resistance of conductor at 70°C | |||
| Specified value(mm) | Mini value(mm) | Specified value(mm) | Mini value(mm) | Lower limit(mm) | Upper limit(mm) | |||
| 2x1/0.4 | 0.25 | 0.15 | 1.00±0.06 | 0.4 | 0.25 | 2.6 | 3.2 | 145.0 |
| 2x1/0.5 | 0.2 | 0.1 | 1.00±0.06 | 0.4 | 0.25 | 2.6 | 3.2 | 95.0 |
| 2x1/0.8 | 0.6 | 0.45 | 2.20±0.10 | 0.45 | 0.3 | 5.0 | 6.0 | 36.6 |
| 4x1/0.4 | 0.25 | 0.15 | 1.00±0.06 | 0.4 | 0.25 | 3.0 | 3.6 | 145.0 |
| 4x1/0.5 | 0.2 | 0.1 | 1.00±0.06 | 0.4 | 0.25 | 3.0 | 3.6 | 95.0 |
| 6x1/0.4 | 0.25 | 0.15 | 1.00±0.06 | 0.4 | 0.25 | 3.5 | 4.2 | 145.0 |
| 6x1/0.5 | 0.2 | 0.1 | 1.00±0.06 | 0.4 | 0.25 | 3.5 | 4.2 | 95.0 |
| 8x1/0.4 | 0.25 | 0.15 | 1.00±0.06 | 0.5 | 0.35 | 4.0 | 4.6 | 145.0 |
| 8x1/0.5 | 0.2 | 0.1 | 1.00±0.06 | 0.5 | 0.35 | 4.0 | 4.6 | 95.0 |
Mechanical,physical,electrical perfomances of polypropylene insulated, PVC sheath round telephone wire:
| item | Performance index | ||||
| Tensile strength before test of insulation aging(medium value) | ≧ 12.5Mpa | ||||
| Tensile strength after test of insulation aging | ≧ 10Mpa | ||||
| Elongation rate at break before test of insulation aging | ≧ 125% | ||||
| Elongation rate at break after test of insulation aging | ≧ 100% | ||||
| Insulation removability | Do not hurt insulation and conductor | ||||
| Cold bend of insulation | Not crack | ||||
| item | Performance index | ||||
| Heat impulse on insulation | Not crack | ||||
| Insulation dielectric strength | Not breakdown at 1500V,1min | ||||
| Test of insulation resistance | 20°C≦200MΩ.KM/ 70°C≦0.3MΩ.KM | ||||
| Broken,mixture wire of Conductor(continuity) | No breakdown and mixture | ||||
| Voltage withstand of final wire | Not breakdown at 2000V,1min | ||||
| Friction resistance of logo | Friction resistant,legible | ||||
