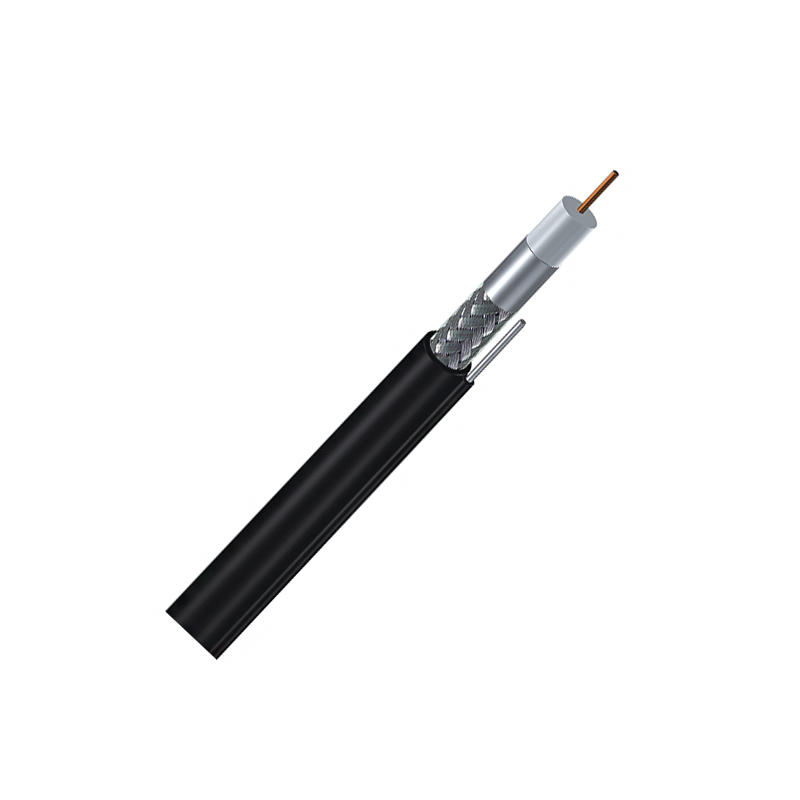

BASIC CONSTRUCTION
| STANDARD SHIELD | TRI-SHIELD | QUAD-SHIELD | ||
| CONDUCTOR | MATERIAL | BC/CCS | BC/CCS | BC/CCS |
| Nom.Dia. | 1.63 | 1.63 | 1.63 | |
| DIELECTRIC | MATERIAL | Foam PE | Foam PE | Foam PE |
| Nom.Dia. | 7.11mm | 7.11mm | 7.11mm | |
| SHIELD | MATERIAL | Al foil +Al braiding | Al foil +Al braiding + Al foil | (Al foil +Al braiding)*2 |
| COVERAGE | 40%-95% | 40%-95% | 60%/40% | |
| JACKET | MATERIAL | PVC/PE | PVC/PE | PVC/PE |
| Nom.Thick. | 1.07mm | 0.94mm | 0.86mm | |
| Nom.Dia. | 10.16mm | 10.16mm | 10.34mm | |
BASIC CHARACTERISTICS
| Nominal Impedance(ohm) | 75±3 | ||
| Nominal Velocity of propagation(%) | 85 | ||
| Nominal Capacitance(pF/m) | 50 | ||
| Sparker Test (VAC) | 4000 | ||
| SRL(dB) | 20 | 20 | |
| Attenuation [68°F (20℃)] | Frequency(MHZ) | Maximum(dB/100ft) | Maximum(dB/100m) |
| 5 | 0.38 | 1.25 | |
| 55 | 0.96 | 3.15 | |
| 250 | 2.05 | 6.72 | |
| 300 | 2.25 | 7.38 | |
| 450 | 2.75 | 9.02 | |
| 600 | 3.18 | 10.43 | |
| 750 | 3.65 | 11.97 | |
| 865 | 3.98 | 13.05 | |
| 1000 | 4.35 | 14.27 | |
