| Application: |
| The Cable is suitable for machine tools production, the installation equineering of complete equipment,power stations,air-conditioning system, heating system,refrigeratory equipments,Office Automation equipments,data processing system and other related situations. |
| Product characteristics: |
| Has good mechanical,electrical insulation and chemical properties,It also has the propetry of anti-electromagnetic wave due to the double-shielded structure. |

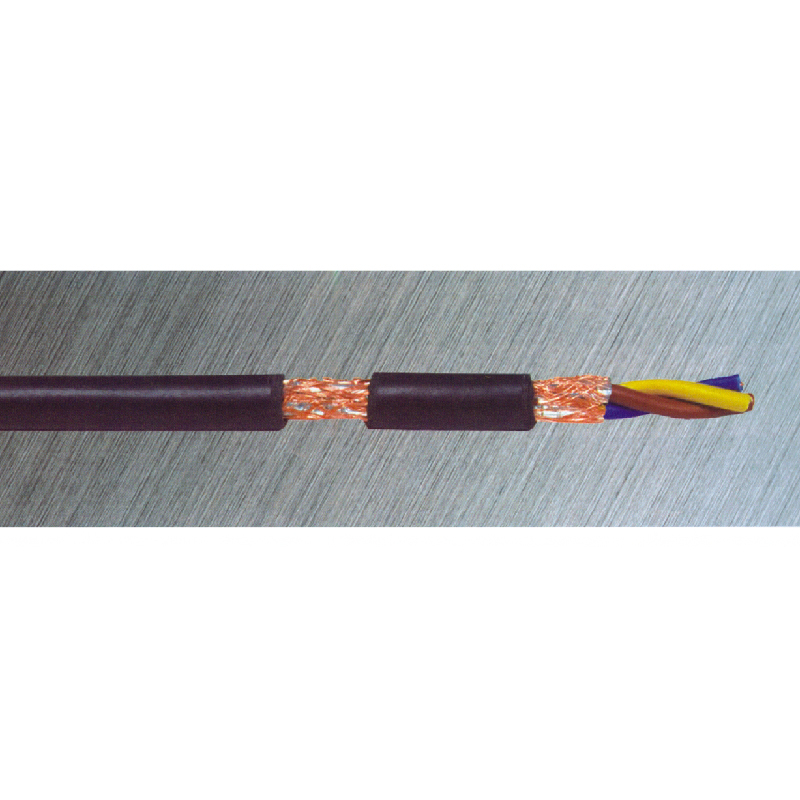

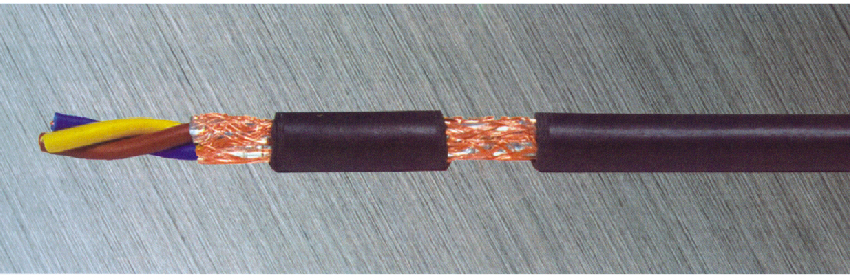

| Structure |
| Conductor:Copper acc.VDE0295 CLASS 5 |
| Insulation: Speciall PVC |
| Color:≦ 0.5mm Black,brown,light blue,purple,pink,orange,blue |
| ≧ 0.5mm Black with white number above 3 cores with yellow and green earth cables |
| Inner liner:PP tape or aluminum foil shield |
| Braiding:bare or tinned copper braid |
| Sheath: 70°C PVC , black(RAL9005) or grey(RAL7001),or acc.to DESINA |
| Standars: |
| Q/321003LLD05-2004 |
| Application: |
| The Cable is suitable for machine tools production, the installation equineering of complete equipment,power stations,air-conditioning system, heating system,refrigeratory equipments,Office Automation equipments,data processing system and other related situations. |
| Product characteristics: |
| Has good mechanical,electrical insulation and chemical properties,It also has the propetry of anti-electromagnetic wave due to the double-shielded structure. |
| Structure |
| Conductor:Copper acc.VDE0295 CLASS 5 |
| Insulation: Speciall PVC |
| Color:≦ 0.5mm Black,brown,light blue,purple,pink,orange,blue |
| ≧ 0.5mm Black with white number above 3 cores with yellow and green earth cables |
| Inner liner:PP tape or aluminum foil shield |
| Braiding:bare or tinned copper braid |
| Sheath: 70°C PVC , black(RAL9005) or grey(RAL7001),or acc.to DESINA |
| Standars: |
| Q/321003LLD05-2004 |
