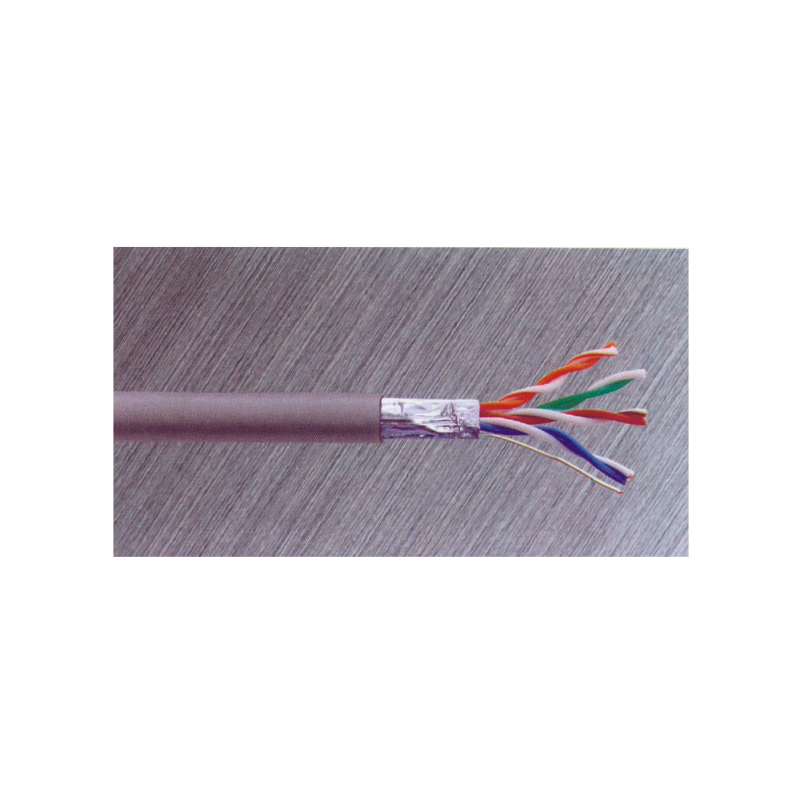

High performance ANSI/TIA/EIA/568B compliant Category 5e insulated cables for mission critical LAN aplications or Structured Cabling System at affordable prices.
| Applications: |
| 10 Base T(IEEE802.3) |
| Fast Ethernet(IEEE802.3U) |
| 100Vg-AnyLAN(IEEE802.12) |
| Token Ring(IEEE802.5) |
| TP-PMD(ANSI X 3T9.5) |
| 100SGps CDDI |
| ATM155 |
| Industry Standards |
| UL/CSA Listed CM,CMR |
| UL and ETL Verified to ANSI/ITA/EIA568B-2 Category5 |
| ISO/IEC-11801 |

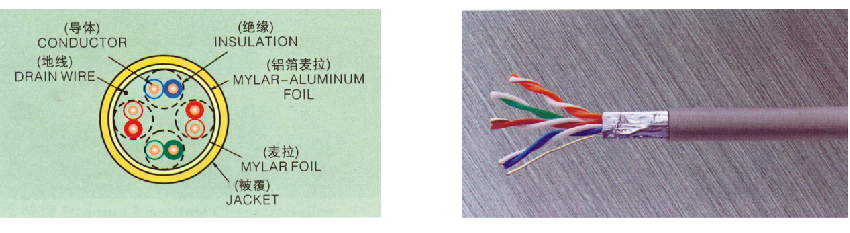

| Product Description |
| Conductor: 24AWG/26AWG Stranded Bare Copper |
| Insulation: HDPE,FRPE |
| Shield:Mylar-Aluminu/Mylar tape |
| Drain Wire:24AWG Soild Copper |
| Jacket:FRPVC |
Product Electrical Characteristics
| Impedance | 100+/—15 ohms |
| Mutual Capacitance,max. nf/1000ft | 17.1 |
| Dc Resistance,max.ohms/1000ft | 28.6 |
| Propagation Delay Skew | 25ns/100m |
| Normal Velocity of Propagation | 0.66 |
| Frequency MHz | SRL(dB)min | Impedance ohm | Attenuation Max | Worst Pair NEXT Min(dB) |
| dB/100M | dB/1000ft |
| 0.772 | 25 | 100±15 | 2.2 | 6.7 | 67 |
| 1 | 100±15 | 2.4 | 7.3 | 65 |
| 4 | 25 | 100±15 | 4.9 | 14.9 | 56 |
| 8 | 25 | 100±15 | 7.0 | 21.3 | 51 |
| 10 | 25 | 100±15 | 7.8 | 23.8 | 50 |
| 16 | 25 | 100±15 | 9.8 | 29.9 | 47 |
| 20 | 25 | 100±15 | 11.1 | 33.8 | 45 |
| 25 | 24 | 100±15 | 12.5 | 38.1 | 44 |
| 31.25 | 23 | 100±15 | 14.0 | 42.7 | 42 |
| 62.5 | 20 | 100±15 | 20.4 | 62.2 | 38 |
| 100 | 18 | 100±15 | 26.4 | 80.5 | 35 |
